Viper F4

Features & Options

  • Viper™ hull with Reverse Chine
  • 17 Degree Transom
  • F4 Step Deck
  • Full “V” Floor
  • Longitudinal Ribs – 6063 Alloy
  • High Transom
  • Yamaha, Mercury, Suzuki, Evinrude & Honda Outboards
  • 50 – 75 Max HP
  • Hull Thickness .100 or .125
  • F4 Step Deck
  • Extruded Gunwale (w/rubber rub rail and slotted interior for accessory mounting)
  • Rod and Gun Storage (port side)
  • Bow Rails
  • Full Flotation
  • Starboard Gunwale Storage Trays with Cup Holder
  • E.I.P (Excel Improved Pod Seats) Rear Deck
  • Rear Deck Storage Boxes
  • Rear Deck Battery Box
  • Rear Deck Seat Base
  • Slide-in Storage Under Driver’s Seat
  • High Front Deck with Seat Base
  • Front Deck Storage with Mesh Panel (optional fuel tank location)
  • Navigation Lights
  • Recessed Light Control Panel w/Courtesy Light, 12V Plug, Rocker Switches and Breakers
  • Bilge 800 GPH
  • .125 Upgrade (5052)
  • Shallow Water Outboard KIK-UP Transom
  • Rear Hand Grab Rails
  • Starboard Rod/Gun Storage (Viper™ F4 Dual Gun Box model)
  • Seat Bases
  • Gloss Paint Colors
  • Camo (Optifade™ Marsh, Optifade™ Timber, Max-4, Natural Gear Green and Brown & Old School)
  • Interior Superliner Coating
  • Built-In Bow 3,000lb KFI Winch
  • Twin 5800 Lumen LED Headlights
  • Interior LED Lighting (White, Blue, Red or Green LED’s)
  • Trolling Motor Kit (plug and battery tray)
  • Full Line of Minnkota Trolling Motors
  • Built-In 11 Gallon BowFuel Tank
  • Rear Portside Aerated Live well
  • Cup & Shell Holder (mounted on accessory rail)
  • Spud Poles


1651 | 16′
1751 | 17′
1860 | 18′

Hull Thickness
1651 | .125
1751 | .125
1860 | .125

1651 | 51″
1751 | 51″
1860 | 60″

Max HP
1651 | 50
1751 | 60
1860 | 75

1651 | 72″
1751 | 72″
1860 | 80″

Max Weight Passengers/Gear
1651 | 825 lbs
1751 | 875 lbs
1860 | 1,100 lbs

Capacity Person/Lbs
1651 | 4/500
1751 | 4/560
1860 | 5/700

Transom Height
1651 | 20″
1751 | 20″
1860 | 20″

Gunwale Height
1651 | 24″
1751 | 24″
1860 | 25″

1751 Viper Gun Box and Storage Tray with Optional Optifade™ Timber Camo

Viper F4

F4 Viper Reverse Chine Step Deck Hull

The Viper F4 with reverse chine hull, commonly used on high-end bass boats gets on step quickly, rides smoothly and turns like it is running on train tracks.

Built-In Fuel Tank

The optional built-in 11 gallon fuel tank is a convenient add on feature for your new Excel boat. Included is a front deck mesh cover with two storage pockets. The tank filler is located on the front deck for easy access.

Control Panel

The standard feature control panel is conveniently located near the driver for easy access to the two interior panel lights switch, bilge, running lights, bow spot light option switch etc. On models with a built-in fuel tank, the fuel gauge is also located near the driver. All switches have built-in breakers and the panel is recessed to protect the switches.

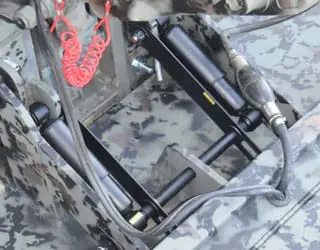

Unique Kik Up Assembly

Most sportsman don’t know they can run an outboard in shallow clear water with our exclusive optional Kik Up assembly. It works by mounting the outboard to this special transom assembly that allows the slow moving boat to tip up when it hits a log, stump or other underwater object. The double Monroe shock assembly dampens the up and downward movement making it seem effortless to run flooded timber, or stumps in your favorite crappie or bass hole. The Kik Up was invented by and exclusive to Excel.

LED Headlight Option

The twin LED 5800 lumen headlight guides you through the darkest marshes or timber. The lights can be adjusted upwards or downwards as needed for your boat design, and the lights rotate around for backing the boat. Turn the light to the side to put out your decoys.

The headlight switch is located on the driver control panel.

Water Resistant Gun Box

All our water resistant storage and gun boxes have a raised edge on top of the box that fits into the cover. This feature prevents normal rainfall and water splashes from getting into the sealed box below. However, be careful at carwashes where high pressure spray can seep up and over the water resistant seal.

This feature is a premium standard feature on all Excel brand boats.
