Features & Options

  • .125 hull
  • .100 interior components
  • Khaki or OD Green
  • Optimal 17 degree transoms for superior mud motor trim control
  • Rod and Gun Storage Trays
  • Bow Rails
  • Full Flotation
  • Triple Taper Chine
  • Extruded Gunwale (w/rubber rub rail and slotted interior for accessory mounting)
  • Front Deck Fuel Tank Storage Area
  • Welded-in and Riveted Full Floors
  • Longitudinal Full Length 2″ X 4″ Ribs – 6063 Alloy
  • High Transom Only
  • Navigation Lights
  • Fold-Down Stand up Bar (3-pin adjustable)
  • EIP (Excel Improved Pods) Model Rear Deck
  • High Front Deck
  • Rear Deck Hand Rails
  • Front Deck Storage with Mesh Panel Cover
  • Recessed Light Control Panel w/Interior Courtesy Light, 12Volt Plug & Rocker Switches with Breakers
  • Bilge 800 GPH
  • Optional Console
  • Exclusive Excel console with dry storage, shelves, switch panel and grab bar
  • .125 Upgrade (5086)
  • Camo Optifade Seats
  • Camo (Optifade™ Marsh, Optifade™ Timber, Max-4, Natural Gear, & Old School)
  • Interior Superliner Coating
  • Built-In 3,000lb KFI Winch (Except Bull Nose Option)
  • 5800 Lumen LED Headlights
  • Interior LED Lighting (White, Blue, Red or Green LED’s)
  • Built-In 11 Gallon Fuel Tank
  • Cup & Shell Holder
  • Spud Poles
  • Trolling Motor Kit
  • Full Line of Minnkota Trolling Motors
  • Full Line of Mud Buddy Shallow Water Motors


1864 | 18′

Hull Thickness
1864 | .125

Max Weight (Passengers + Gear)
1864 | 1,231 lbs

1864 | 64″

Max HP
1864 | 75

1864 | 84″

Transom Height
1864 | 20″

Capacity Person/Lbs
1864 | 5/750

Gunwale Height
1864 | 26″

Switchblade Triple Taper Hull

The Switchblade custom triple taper chine works equally as well with an Outboard, Mud Buddy or Jet Pump (order custom 27″ transom).

Triple Taper Chine

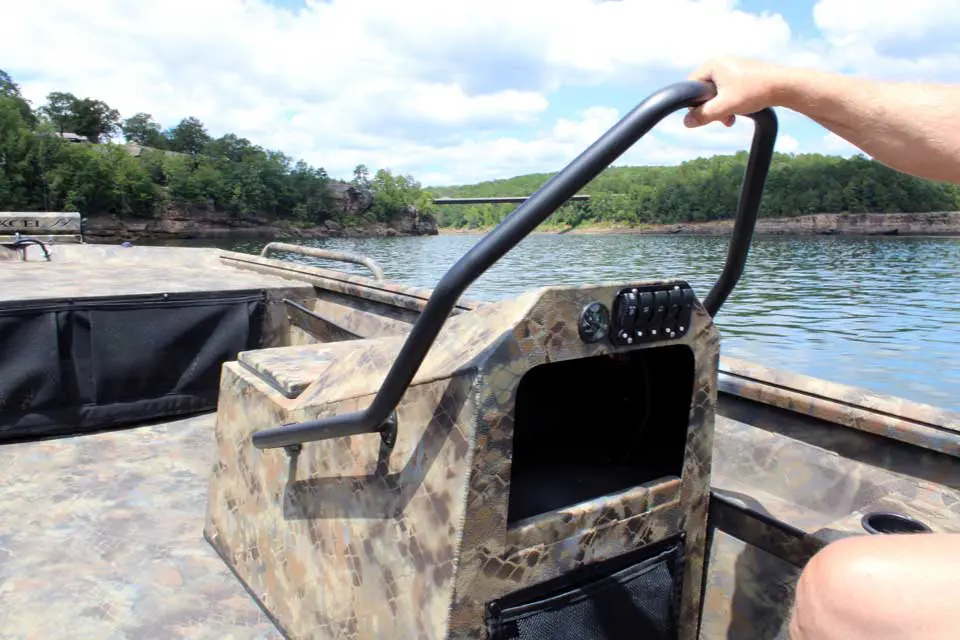

Grab Bar Console

Standing or sitting – the Excel’s new universal console features a grab bar to help you run rivers, timber and take those sharp turns. Just like they use on Mud Buddy motor boats. Standing or sitting, this console makes it so much easier to drive your boat.

Excel’s owner, Glenn Foreman, personally designed this console that does a whole lot of little things that just make sense for any tiller model boat.

In addition to the handy grab bar, the Excel Switchblade console features front dry storage, an easy-access switch panel, and two shelf storage areas for glasses, tools, fishing gear, and hunting shells.

Built-In Fuel Tank Option

The optional built-in 11-gallon fuel tank is a convenient add-on feature for your new Excel boat. Included is a front deck mesh cover with two storage pockets. The tank filler is located on the front deck for easy access.

Mud Buddy Motors

Full feature surface drive motors like the Mud Buddy with electric shift F-N-R, tough outdrives and reliable power allow the Excel to go places others can only imagine. Whether in the deep timber of Arkansas, the beautiful backwaters of the Everglades, mystical swamps of Louisiana or the shallow vast grass marshes of the West, this is the boat to own.

Camo Seat Option

This Optifade camo seat cover option is a great add to your boat. The seats come in both Optifade Marsh and Timber patterns. As most customers know, Optifade is exclusive to Excel and Mud Buddy and Sitka clothing gear products. The seats are a perfect addition to your Sitka clothing and Excel/MudBuddy boat.

LED Headlight Option

The twin LED 5800 lumen headlight guides you through the darkest marshes or timber. The lights can be adjusted upwards or downwards as needed for your boat design, and the lights rotate around for backing the boat. Turn the light to the side to put out your decoys.

The headlight switch is located on the driver control panel.
