Switchblade Center Console Jet

Switchblade Center Console Jet

Features & Options

  • .125 hull
  • Exclusive Excel console with battery storage, and switch panel
  • Khaki or OD Green
  • Rod and Gun Storage Trays
  • 13″ Rear Hand  Rails
  • Full Flotation
  • Triple Taper Chine
  • Extruded Gunwale (w/rubber rub rail and slotted interior for accessory mounting)
  • Front Deck Fuel Tank Storage Area
  • Welded-in  Floors
  • Longitudinal Full Length 2″ X 4″ Ribs – 6063 Alloy
  • High Transom Only
  • Navigation Lights
  • Hunt Pod Step
  • EIP (Excel Improved Pods) Model Rear Deck
  • High Front Deck
  • Rear Deck Hand Rails
  • Front Deck Storage with Mesh Panel Cover
  • Light Control Panel w/Interior Courtesy Light, 12Volt Plug & Rocker Switches with Breakers
  • Bilge 800 GPH
  • .125 Upgrade (5086)
  • Camo Optifade Seats
  • Camo (Optifade™ Marsh, Optifade™ Timber, Max-4, Natural Gear, & Old School)
  • Winter Kit which includes windshield and grab bar
  • Built-In 3,000lb KFI Winch
  • 5800 Lumen LED Headlight
  • Interior LED Lighting (White, Blue, Red or Green LED’s)
  • Cup & Shell Holder
  • Spud Poles
  • Trolling Motor Kit
  • Full Line of Minnkota Trolling Motors

Specs

Length
1864 | 18′

Hull Thickness
1864 | .125

Max Weight (Passengers + Gear)
1864 | 1,231 lbs

Bottom
1864 | 64″

Max HP
1864 | 80

Beam
1864 | 84″

Transom Height
1864 | 27″

Capacity Person/Lbs
1864 | 5/750

Gunwale Height
1864 | 26″

Switchblade Triple Taper Hull

The Switchblade custom triple taper chine works equally as well with an Outboard, Mud Buddy or Jet Pump (order custom 27″ transom).

Tunnel hull silhouette brown
Img 8604 scaled

Forward Console (Shown Optional Winter Kit)

The ergonomic helm includes a responsive steering wheel, easy-to-reach rocker switches, and a clean instrument layout for quick monitoring at a glance. Integrated ignition with safety lanyard, marine-grade controls, and protected wiring ensure reliable performance. A built-in grab rail and sturdy construction add confidence when running rough water or maneuvering tight areas.

Built for durability, simplicity, and control, the Switchblade center console keeps the operator focused on the water ahead—exactly where it should be. (Winter Kit) includes windshield and grab bar.

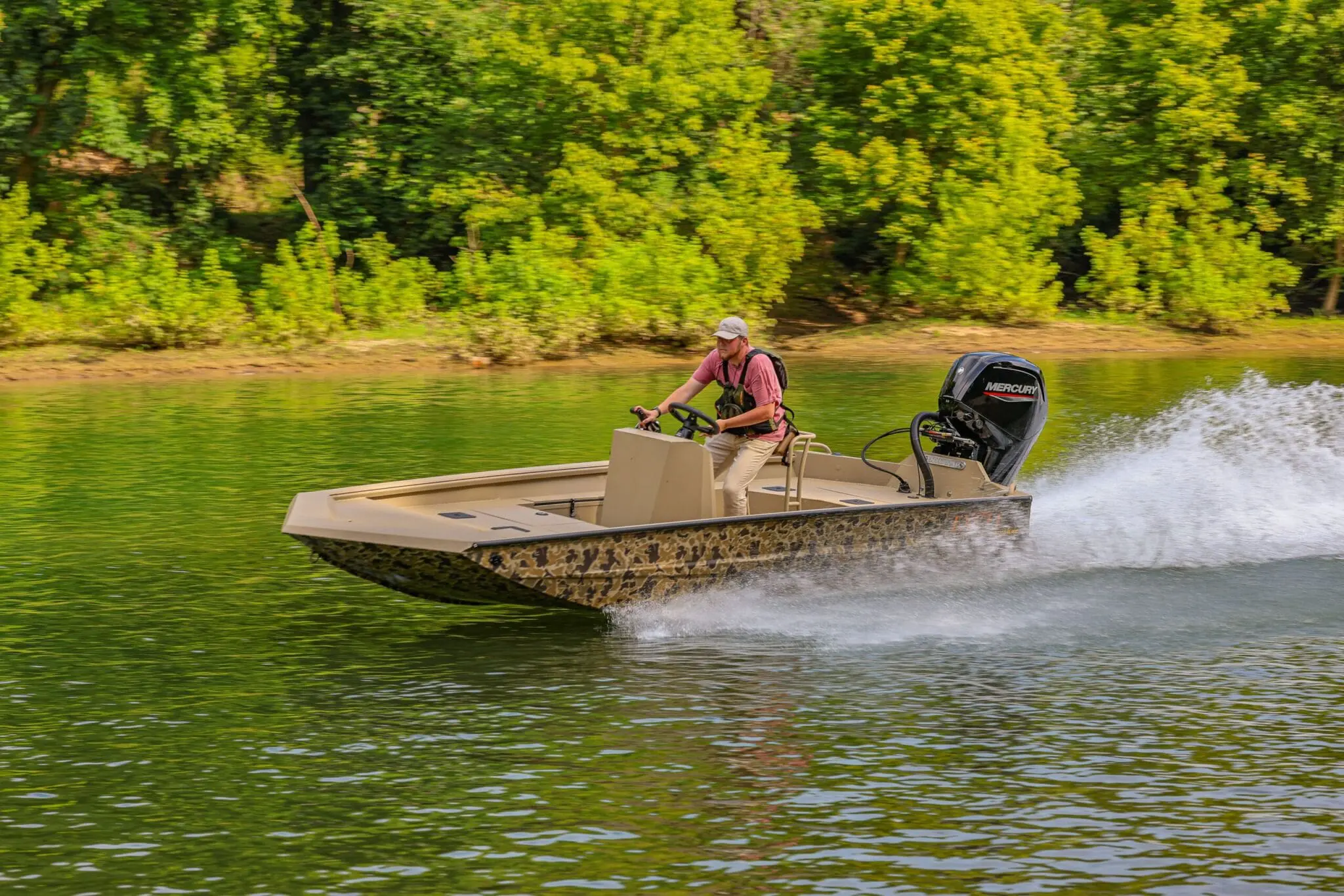

Switchblade cc jet 49 scaled
Switchblade cc jet 11 scaled

Portable Fuel Tank

The optional 9-gallon portable fuel tank is a convenient add-on feature for your new Excel boat. The tank  is located on the front deck for easy access.

Img 8604 scaled

Winter Kit

Optional Winter Kit with Grab rail, and windshield to keep the cold wind off of the driver on those brisk early mornings.

1864 switchblade10web

LED Headlight Option

The LED 5800 lumen headlight guides you through the darkest marshes or timber. The lights can be adjusted upwards or downwards as needed for your boat design, and the lights rotate around for backing the boat. Turn the light to the side to put out your decoys.

The headlight switch is located on the driver control panel.
