Stormcat

Features & Options

  • Centerline length: 21’
  • Overall length: 23’
  • Overall length with trailer & motor: 28.5’
  • Deadrise at transom: 18 Deg
  • Deadrise at bow entry: 42 Deg
  • Fuel Capacity: 70 Gal
  • Hull sides, gunwales, floors: 0.160 5052-H32
  • Hull bottom, transom, and offshore bracket: 0.250 5086-H116
  • Constructed with heavy aluminum plate and has a limited lifetime hull warranty
  • Interior coated with anti-slip polyurethane liner
  • Lightship static draft: 18-20” + motor
  • Seastar Hydraulic Steering
  • Anchor Storage with Rope Cleat
  • Tackle Storage with 9 Plano Boxes

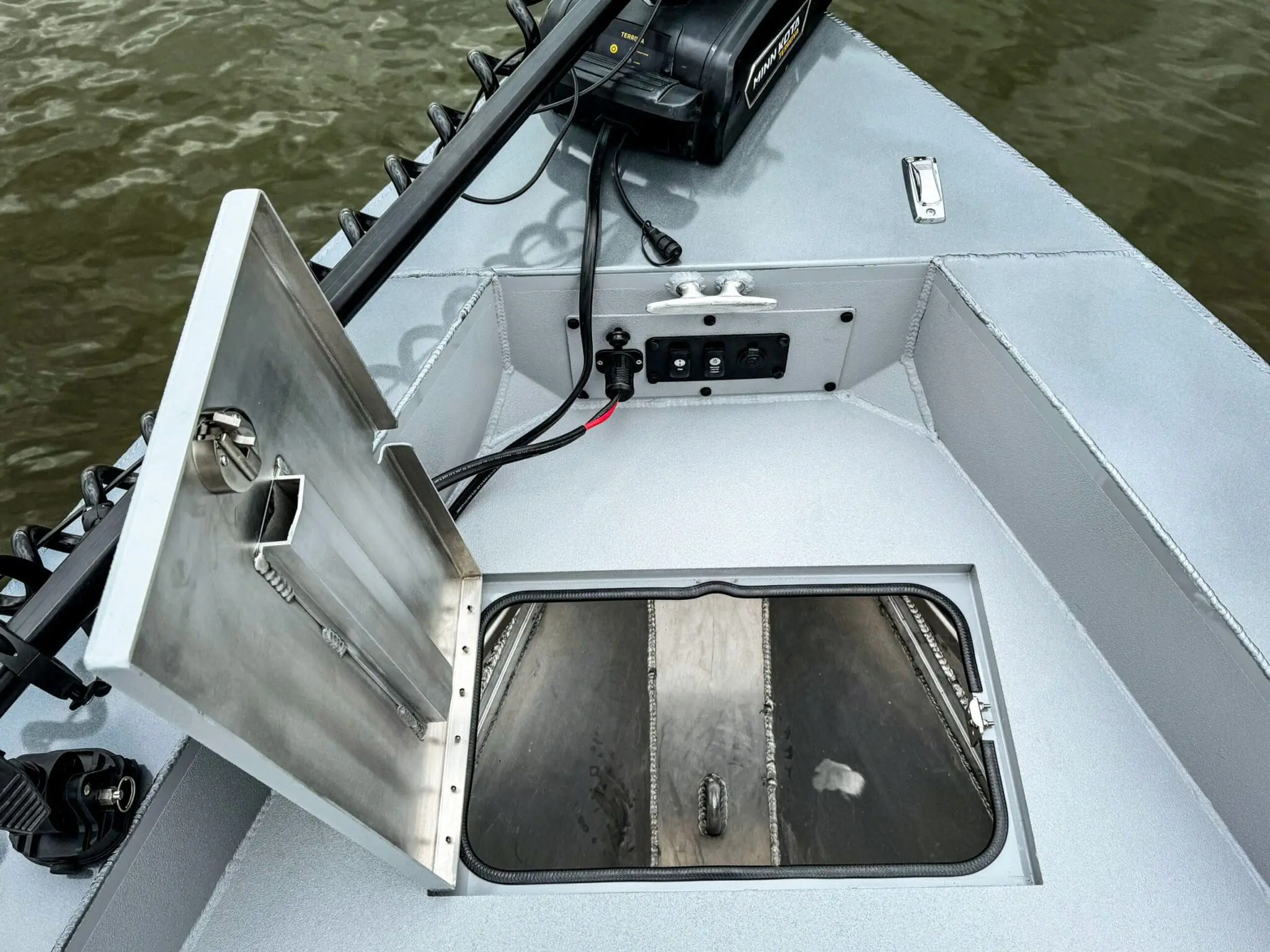

  • Front Deck Semi-Dry Storage Box
  • Self-Bailing Front Deck
  • Front Deck Seat Base

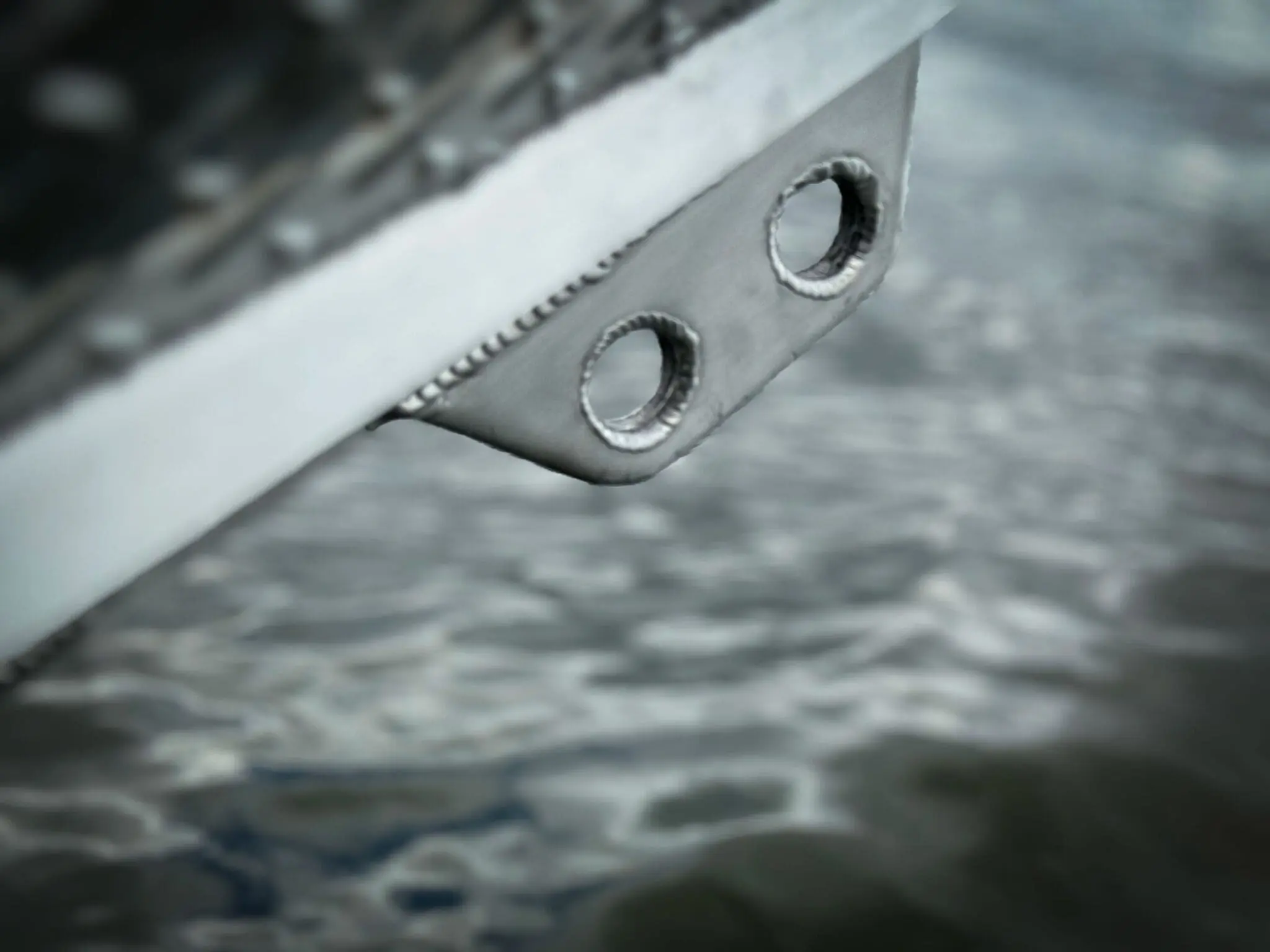

  • Super Duty Integrated Bow Eye

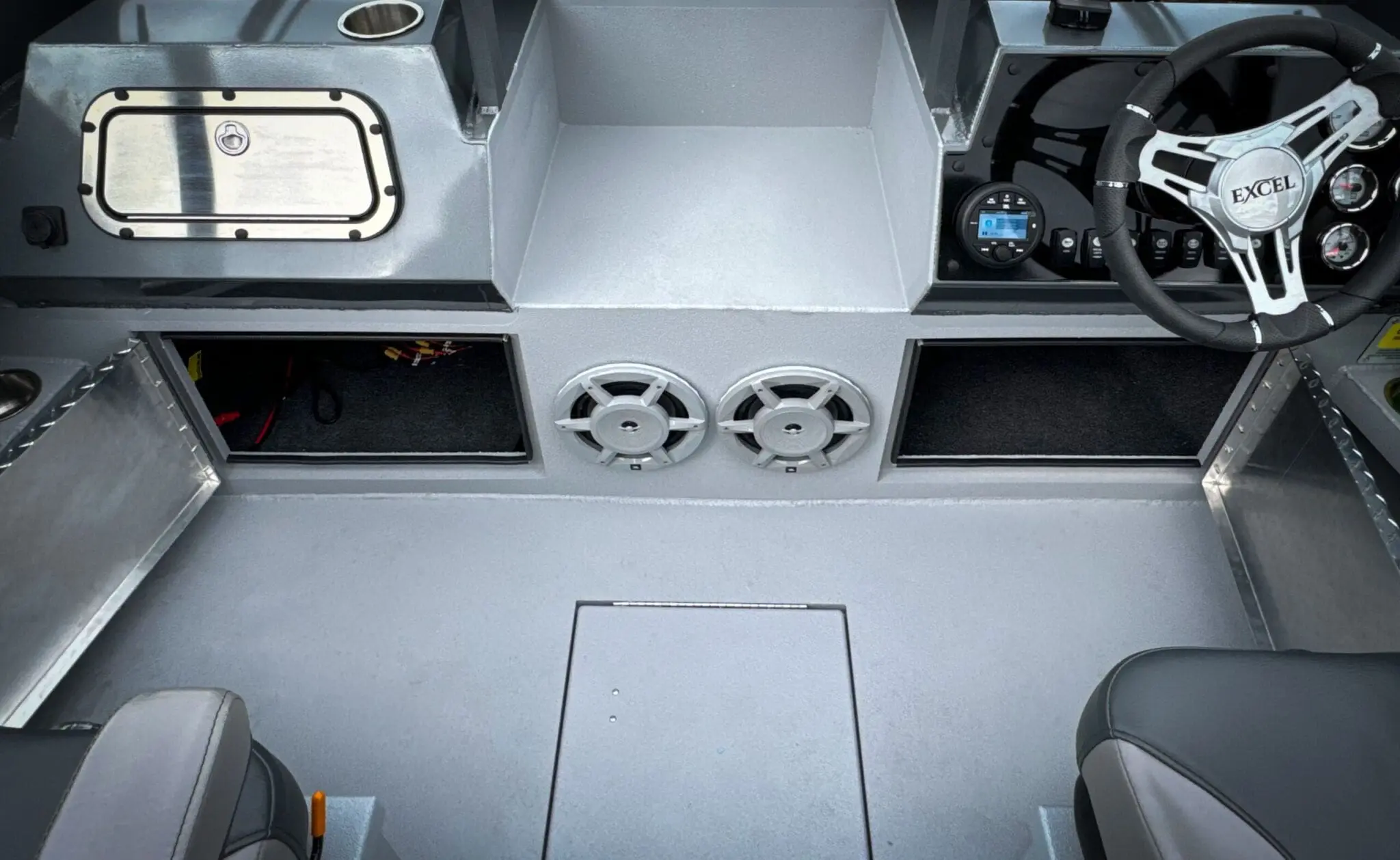

  • Large Under-Dash Storage (Lockable)
  • 70 Gal Fuel Capacity (Belly Tank)
  • Low Dash Design for Clear View Fish Finder Mounting
  • Driver Wiper with Dash Controls
  • 80 Gal Livewell/10 Gal Baitwell w/ Dual 1200 GPH Aerators & 1200GPH Recirc
  • In-Floor Rod Storage Compartment for 10 Rods – 8′ (Lockable)
  • Side Gunwale Trays with Sinker Storage Compartments
  • Walk-Through Transom Door
  • Wash down Pump and Hose
  • Three Cup Holders
  • Fuel Water Separator
  • Swim Deck/Offshore Bracket with Starboard Fold-Up Boarding Ladder
  • Large Lighted Glove Compartment

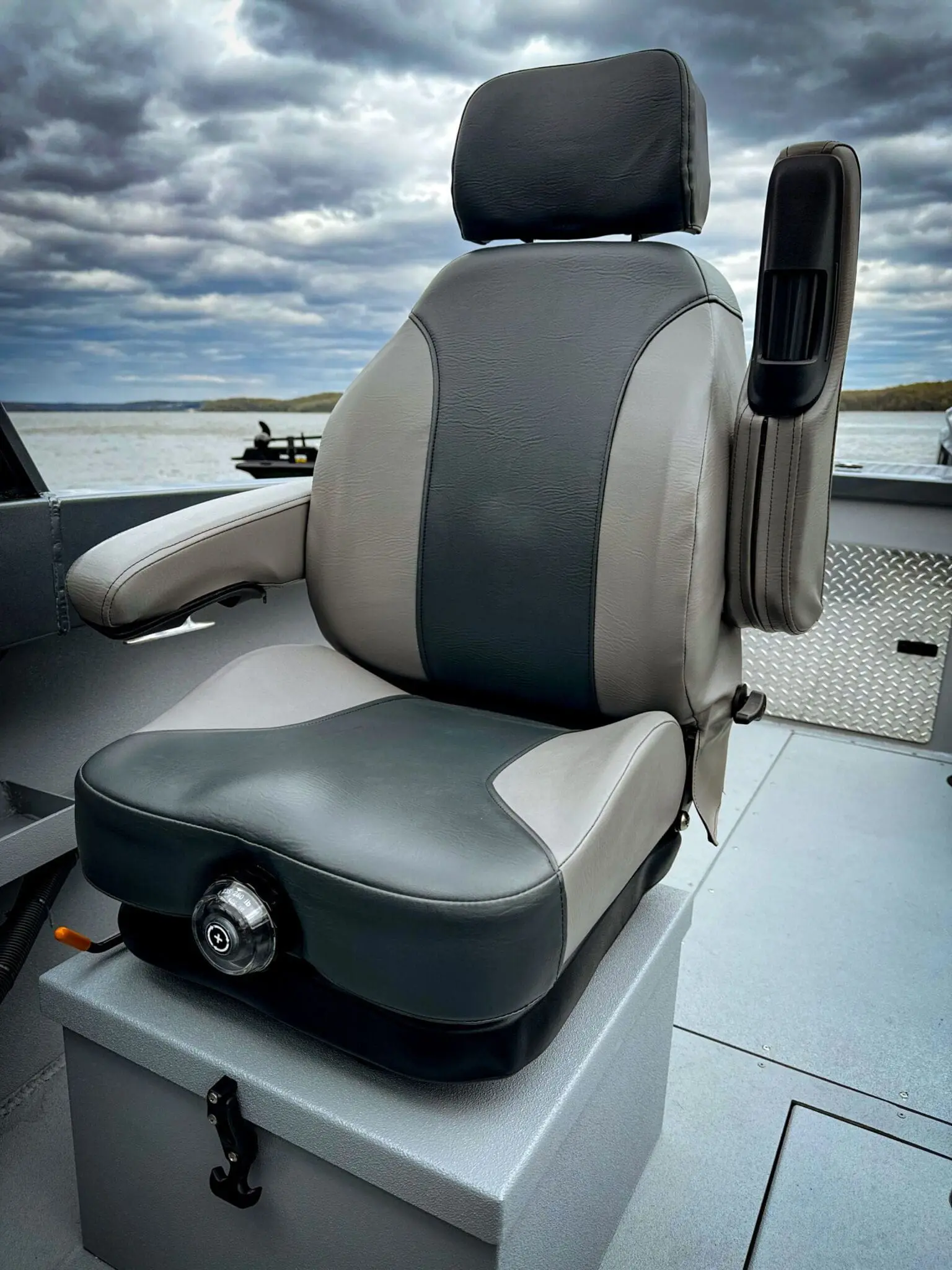

  • Driver and Passenger Adjustable Suspension Seats Mounted on 18″X18″ Storage Boxes with Slides, Swivels, Recline & Headrest
  • Hand Wash & Bait Sink
  • Transport Cover
  • Brushed & Polished Surfaces
  • 12v USB (Driver Dash) – USB/USBC (Passenger Dash(
  • LED, Nav & Running Lights
  • Three 1200 GPH Auto Bilge Pumps
  • Twin Aft Battery Trays

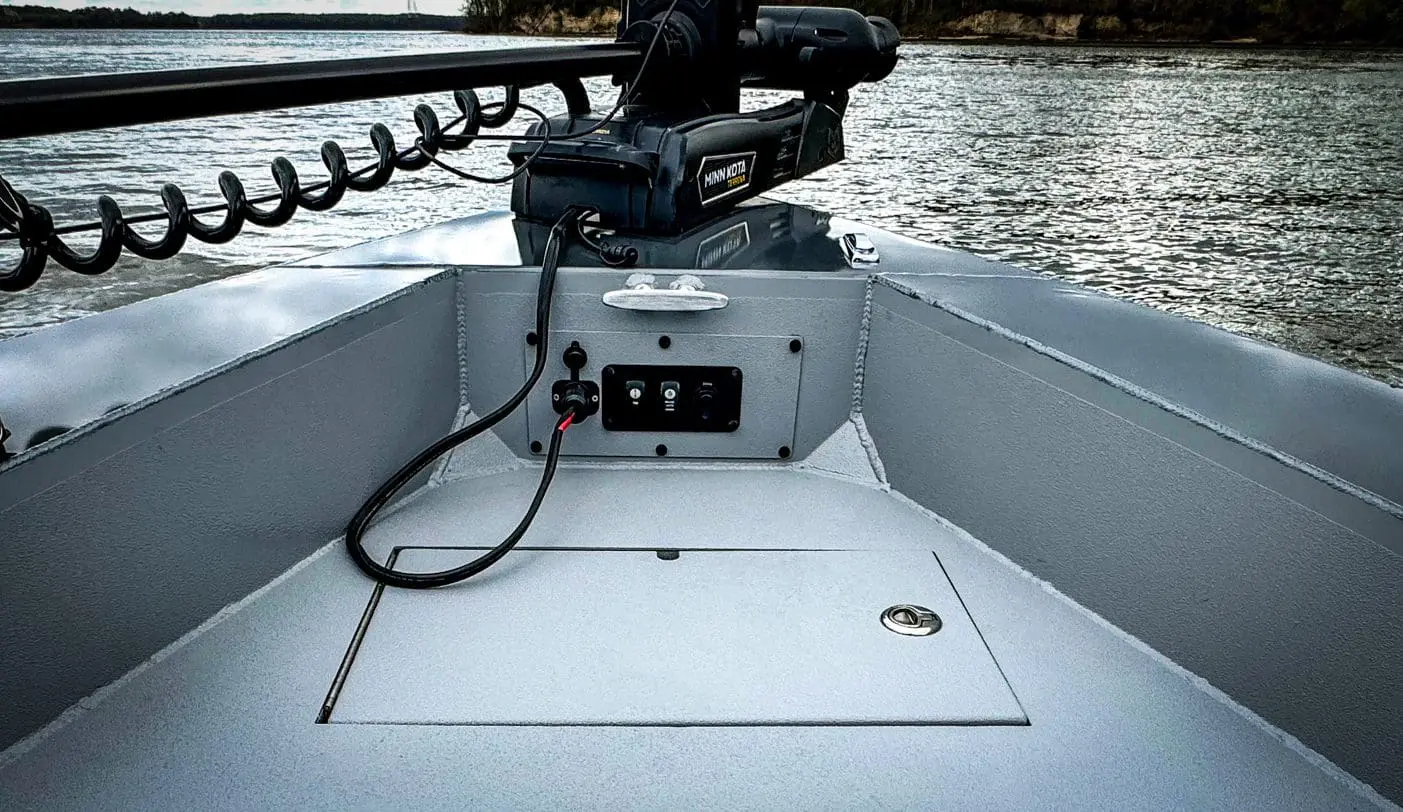

  • Bow Trim & Nav Light Controls

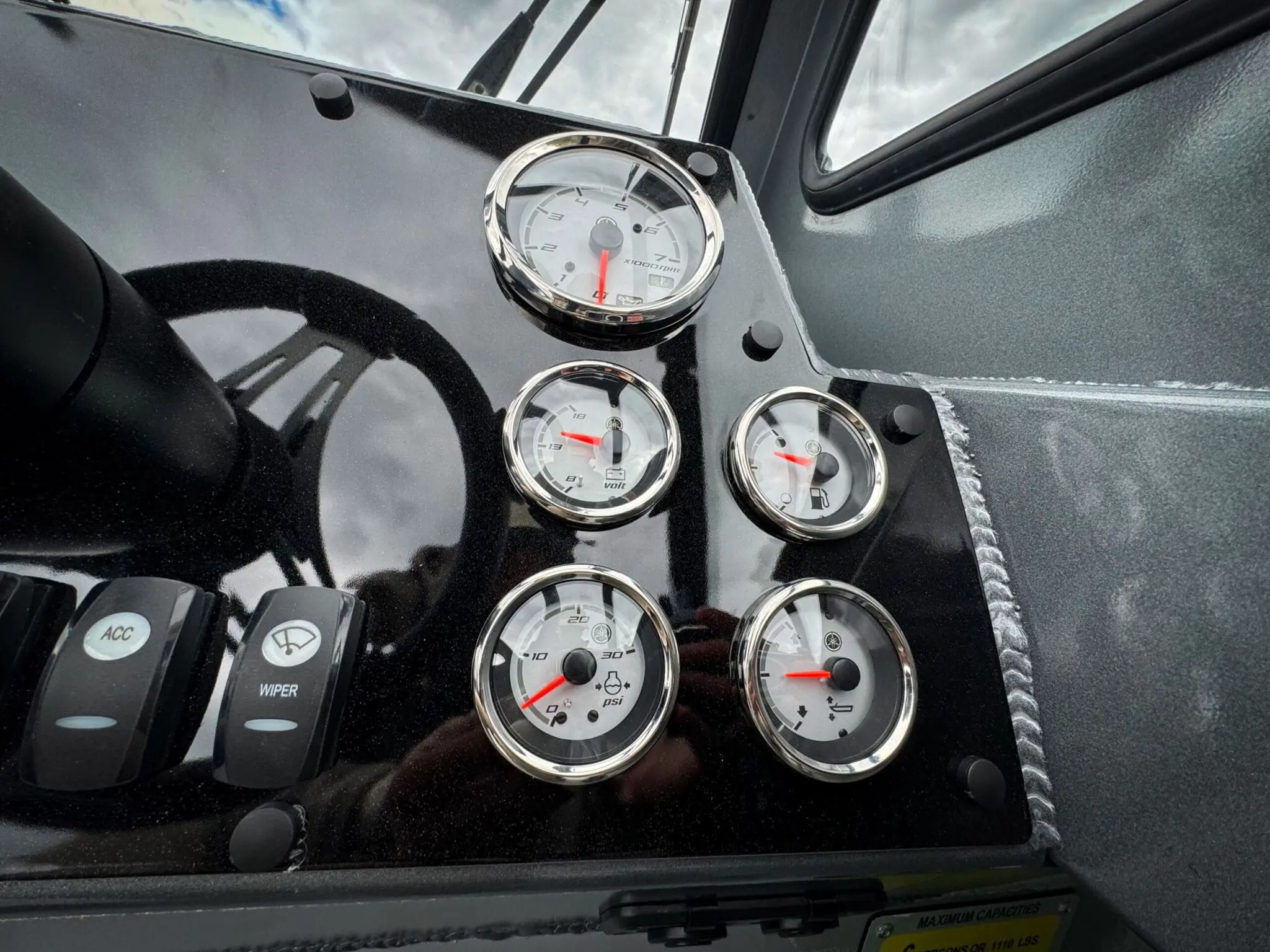

  • Fuel, RPM, Voltage, Water Pressure, Trim Gauges & Rocker Switches
  • Master Battery Cut-Off Switch (Easy Access Side Mounted – Rear)
  • Tandem I-beam w/ Alloy Wheels
  • Backlit Laser Cut Steps
  • 4-Wheel Disc Brakes
  • Alloy Spare Tire w/ Belly Mount
  • Heavy Duty Winch – 2 Speed
  • LED Tail Lights w/ Backup & 7-way Plug
  • Jack Stand W/ 8″ Wheel
  • 4 Step Boarding Ladder
  • V-Black Bow Guide
  • Mercury, Yamaha, Suzuki Engines
  • Kicker Motor (Mercury, Yamaha, Suzuki)
  • Paint Options
    • Solid Color – Interior (Recomended: Storm Gray)
    • Two Tone Upgrade
    • Metallic Clear Coat
  • LED Underwater Lights (Red, Green, Blue White or purple
  • LED Interior Light Package – Red, Green Blue, White or Purple
  • 12″x12″ Lenco Ectric/Hydraulic Trim Tabs w/ Dash Controls
  • Stereo with Two 8″ Speakers
  • 3 Bank Battery Charger
  • Turtle Box Speaker
  • Passenger Seat Options:
    • Rear Seats – River Master Fixed Arm (On Pedestal with Swivel
    • Rear Seats – Millennium Folding Seats (On Pedestal with Swivel)
    • Front Deck Seat – Millennium Fold Down (On Pedestal with Swivel)
    • Front Deck Seat – Millennium Casting Seat (on Pedestal with Swivel)
  • Trailer Options:
    • Ratchet Tie Downs (Non Salt Water Use)
    • Alum. Trailer – Upgrade
  • Canvas Options:
    • Cockpit Mooring Cover with Storage Bag – Black
    • Bimini Top Set (Top, Sides & Drop Curtains, Storage Bag)
  • Tread Plate Package: Anchor Guard, Doors, Lids
  • Passenger Windshield Wiper



  • Single tone paint scheme
  • Deluxe graphics package w/ carbon fiber Excel Decals

Hull Color Options: Available in two-tone combinations.

Specs

Boat Length
21′

Hull Thickness
0.160” 5052 (Sides)
0.250” 5086 (Bottom)

Dry Weight
2,675 lbs

Max Horsepower
300

Transom Dead-rise
18-degrees

Approx. Overall Length with Engine and Trailer
28.5′

Rod Box (In-Floor)
Rods – 10 x 8′

Aft Livewell
80 GAL livewell/20 GAL BAITWELL w/ DUAL 1200 GPH AERATORs & 1200 GPH RECIRC

Beam
102″

Fuel
70 gallons

Bottom
84″

Persons and Gear
6/1110 lbs

Side Height
35″

Transom Height
25″

New Deep V Hull

The Stormcat’s advanced hull allows you to cut through the water at speeds up to 55mph while maintaining the comfort you would expect from a world class cat fishing boat.

Constructed from hefty .250 ga aluminum for the bottom and .160 ga aluminum for the sides, it’s a fortress ready to tackle any body of water. This robust design ensures you navigate with confidence, knowing your vessel can withstand the elements and deliver unwavering performance, no matter the conditions.

Control at your Fingertips

The Stormcat’s console is an angler’s dream, putting complete control of your rig right at your fingertips. Fuel levels, RPMs, voltage, and water pressure are all monitored with clear gauges, while rocker switches offer precise trolling motor and live well adjustments.

The low-profile dash ensures an unobstructed view for mounting fish finders, and both driver and passenger enjoy wiper blades controlled from the dash for clear vision in any weather. Ample lockable under-dash storage keeps essentials secure, while driver and passenger suspension seats mounted on spacious storage boxes provide ultimate comfort with swivel, recline, and headrest adjustments.

Finally, a large lighted glove compartment offers additional storage for frequently used items, making every fishing trip on the Stormcat a smooth and successful one.

SafELy store your rods

The Stormcat boasts a secure and spacious lockable center rod storage, eliminating the hassle of transporting and protecting your fishing arsenal. Accommodating up to ten 8-foot rods, this compartment ensures your prized possessions remain safe and organized throughout your journey, allowing you to focus on the thrill of the catch rather than worrying about tangled lines or damaged equipment.

Soft Top

The Stormcat offers an optional Bimini top for sun protection and shelter, complete with side curtains for additional weather defense. These curtains attach securely using twist locks and snaps, providing a comfortable, enclosed space. The zip-up/down back rear curtain adds further versatility, allowing you to adjust the airflow and tailor the shade coverage to your preference, ensuring a relaxing and enjoyable time on the water regardless of the conditions.

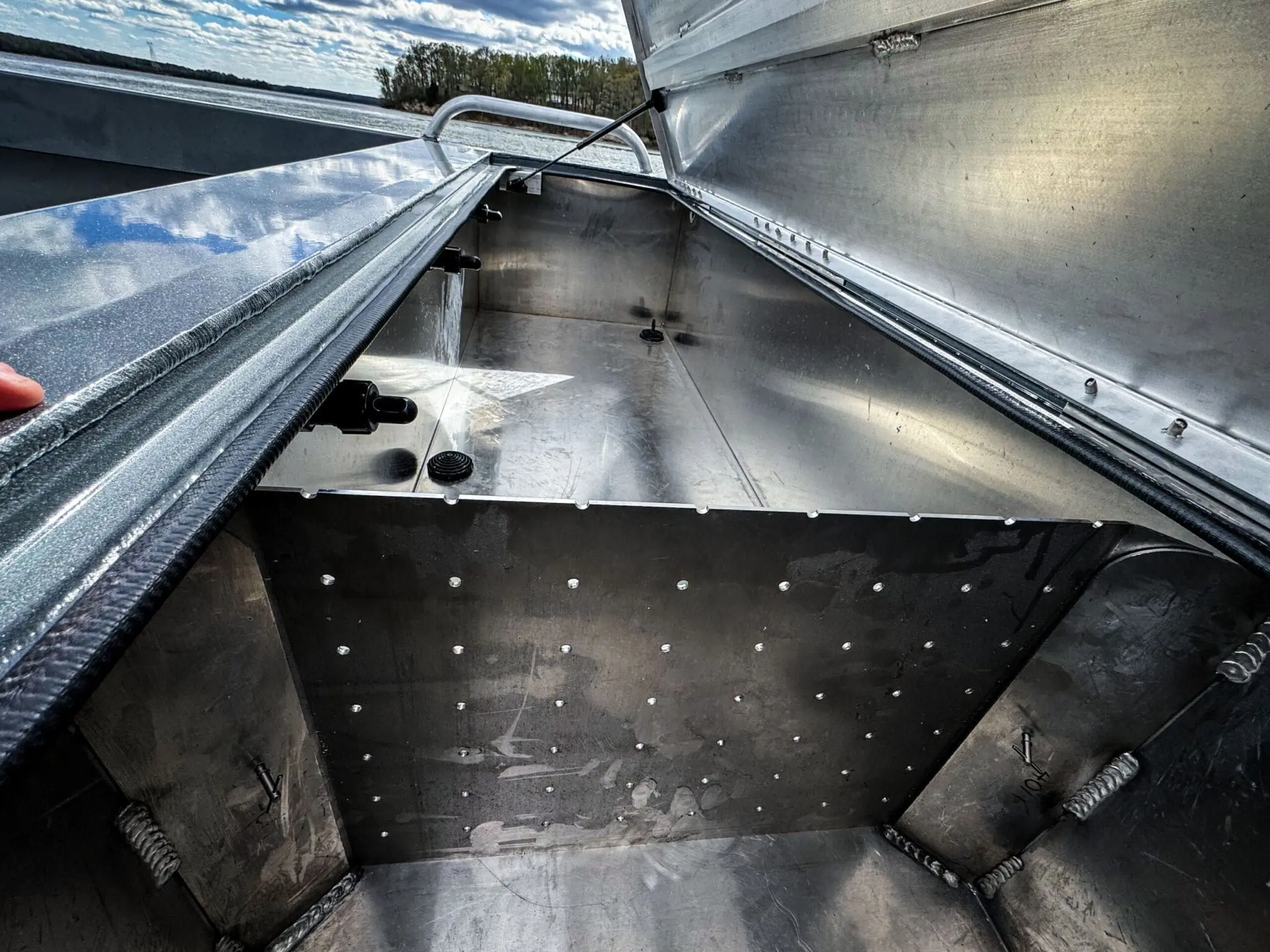

Livewell/Baitwell

The Stormcat’s livewell is a fisherman’s haven, offering a massive 100-gallon capacity to keep your catch healthy and lively. This impressive feature can also be conveniently divided into an 80-gallon livewell and a 20-gallon baitwell, providing ultimate versatility. Whether you’re targeting trophy catfish or stocking up on live bait, the Stormcat’s livewell ensures your fishing endeavors are met with success.

Beaching Plate

This reinforced steel plate, strategically positioned along the hull’s bottom, acts as a protective shield against impact, making it incredibly resistant to damage from grounding or collisions. It’s like a bulletproof vest for the boat, ensuring that even in the face of harsh conditions, the hull remains intact and seaworthy.

Lots of Dry Storage & Rod Storage

The Stormcat’s abundance of storage goes beyond catering to catfish enthusiasts, transforming the Stormcat into a haven for anglers targeting a wide array of species, ensuring every fishing trip is a well-prepared and successful adventure.

The lockable center rod compartment swallows up to 10 8-foot rods, while lockable under-dash storage and spacious 18″x18″ storage boxes under the seats keep tackle, equipment, and personal belongings secure. Front deck tackle storage with 9 Plano boxes, ample dry storage in the bow and a large lighted glove compartment further expand the organization options.

Unequaled Fit & Finish

The Stormcat boasts an unequaled level of fit and finish that elevates the fishing experience. Plush, adjustable suspension seats cradle anglers in comfort, while the low-profile dashboard is meticulously crafted with intuitive controls and clear gauges. The swim deck with its offshore bracket and fold-up boarding ladder exudes functionality, while brushed and polished surfaces throughout the vessel gleam with meticulous attention to detail.

Every element on the Stormcat, from the seating to the smallest trim piece, reflects a commitment to quality and craftsmanship, making it a boat that not only performs exceptionally but also looks stunning on the water.

Custom Layouts to fit your needs

Whether you prioritize ample casting space, additional seating for guests, or specialized fishing features, the Stormcat offers configurations to match your vision. This level of personalization ensures you have the ideal setup for conquering any body of water and pursuing your angling goals in ultimate comfort and style.

Click The + Button To View Our Layout Option
